Core functions
l EmbeddedLinuxoperatingSystem, safe and stable operation
l High performance with low power consumptionprocessor,equipment operationLow power consumption and less heat
l Embedded in the industry's leading deep learning face recognition algorithm，Face recognition rate>99%, false recognition rate<1%
l Support super smart wide dynamic,Fearless to strong light, backlight and low light, adapt to various complex light scenes
l Support the largest face recognition mode, support face optimization, face enhancement and face exposure, improve image quality
l Support the recognition distance control of 0.3~2M, which can effectively prevent the misrecognition of people who are far away
l Support live detection function, effectively solve the deception problem of photos, videos, etc.
l Standard1Ten thousand face database,1Wan Zhangkaku, 50,000 records storage
l Accurate and rapid identification and comparison in milliseconds,Face recognition speed (1:N)≤0.2S/people
l Support multiple verification modes of face, IC card, ID card physical card number, face + swipe card, And support the customization and expansion of verification methods
l Optional face recognition wake-up function to avoid unwilling recognition of whitelisted persons
l Industrial design,Not afraid of high temperature and severe cold,Adapt to temperature range-20℃～60℃,Suitable for indoor all-weather scenes
basic skills
l 2 million 1/2.7 inch CMOS image sensor, good low illumination effect, high image definition
l HD fixed focus 4mm&F2.2 aperture security grade industrial lens, anti-backlight
l Support screen automatic sleep,Automatically sense the human body, quickly turn on the fill light, and wake up the face recognition working mode;
l Support online/offline working mode, equipped with 100M Ethernet port, optionalWIFIWireless connections
l Indoor wall installation, support 86 boxes embedded in the wall installation, beautiful and seamless installation
l Anti-surge, anti-static, lightning protection design, Set up tamper switch
l Provide comprehensive secondary development technical support

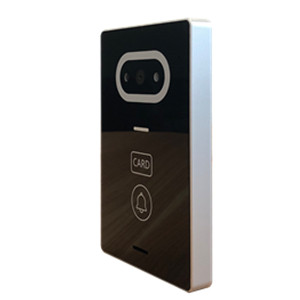

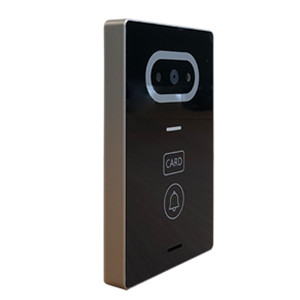

basic information | product name | Face recognition access control unit |
Device model | STD-5MB0011-BC | |
operating system | EmbeddedLinux system | |
camera | Resolution | 200WPixel (1920×1080) |
sensor | 1/2.7 inch low illumination CMOS sensor | |
Lens | HD fixed focus4mm&apertureF2.2 | |
White balance | Automatic, low color temperature, high color temperature, manual | |
Wide dynamic | Digital wide dynamicWith real wide dynamics | |
Fill light | White light fill light | |
Smart function | Detectangle | Vertical viewing angle:90Degree, horizontal viewing angle:53degree |
Intelligent detection | Maximum face detection | |
storage | 10,000 face base library, 10,000 card library,5Ten thousand records storage | |
Accurate recognition | Recognition speed≤0.2S/Person, recognition accuracy≥99.99% | |
Recognition distance | 0.3M-2.0MAdjustable | |
Live detection | stand by | |
Recognition mode | Brush face, brush ICCard, ID card physical card number, face + swipe card combination | |
parameter settings | Black and white list,Identification parameters, image settings, information display, | |
Alarm management | Blacklist alarm, door overtime not closed alarm | |
Operating mode | Support online and offline work | |
Touch button | Face recognition wake-up function | |
Rich interface | communication method | wired |
Network Interface | 1A10/100M network adaptive, RJ45interface | |
Door lock interface | Door opening signal, door sensor status, switch button | |
Serial interface | 1ARS232Serial port | |
Wiegand interface | 3root(D0,D1,GND) Support Wiegand26,34 | |
Reset interface | stand by | |
Alarm interface | 1 alarm input,2Alarm output | |
audio port | Built-in speaker | |
Tamper switch | stand by | |
Platform Agreement | Active registration, SDK,WebSocket, HTTP | |
General parameters | Power supply | DV12±20% |
Power consumption | ≤10W | |
working environment | Indoor work, temperature:-20℃~60℃ humidity:10~90%RH | |
Protection level | IP42Protection level, air pressure 86kPa～106kPa, antistatic: contact±6KV,air±8KV | |
Installation method | Wall-mounted installation, 86Box installation | |
size(mm) | 140(L)*90(W)*14.2(H) mm | |
weight | About 1.0kg |
